A standard single-phase switchboard upgrade in Newcastle typically costs from $1,500 to $3,000 depending on the board size, the number of circuits and any extra work your home needs. The main things that change the price are how many circuits you have, the condition of your wiring, the backing board and meter box, any plans for solar, a battery or an EV charger, single-phase or three-phase power, and how easy the board is to get to. These are typical Newcastle ranges, including GST. Your final price is confirmed in a fixed, written quote once we’ve seen your board.
This guide explains each of those factors in plain terms, why two quotes for the same job can look so different, and what to check before you say yes to one.
Why there’s no single price for a switchboard upgrade
A switchboard upgrade isn’t just swapping one box for another. Your switchboard is where power from the street is split into the circuits that run your lights, power points, oven, hot water and air con. The new board has to suit the wiring behind it, the supply coming into your home and the way your family uses power now and over the next few years.
If you’ve been searching for how much it costs to replace a switchboard, you’ve probably found prices that don’t match what you’re quoted. Some figures you’ll find are years out of date, and most don’t say what’s included. At Insight Electrical, we look at your board first, then give you a fixed price in writing before anything is pulled apart.
As a guide, here’s what switchboard upgrades typically cost in Newcastle, including GST:
| Type of job | Typical cost (incl. GST) |
|---|---|
| Standard single-phase switchboard replacement | From $1,500 to $3,000 depending on the board size and the number of circuits |
| Switchboard and meter box replaced together | From $2,000 to $4,000 depending on the meter box and whether the supply needs to be disconnected and reconnected |
| New three-phase switchboard (home already on three-phase) | From $2,500 to $4,500 depending on the board size and the number of circuits |
| Converting from single-phase to three-phase | From $4,000 to $10,000 depending on the network work needed, and more if the supply in your street has to be extended |
| Removing an old asbestos backing board | Adds from $300 to $800 depending on the size of the board |
What affects the cost of a switchboard upgrade?
These are the seven things that make the biggest difference to what you’ll pay.
1. The size of your home and the number of circuits
A small unit with a few circuits needs a smaller board and less time than a four-bedroom house with a separate oven circuit, ducted air con, a pool pump and a granny flat. More circuits mean more breakers, more safety switches and more connections to label and test.
Safety switches are a big part of this. In NSW, when a switchboard is replaced, the new board needs safety switches, also called RCDs, protecting the circuits it supplies. These usually sit in the switchboard, not in your light switches or power points, and they cut the power in a split second if electricity leaks where it shouldn’t. Many older boards have none, or only one covering a few power points, so the more circuits you have, the more protection the new board needs.
2. Whether the wiring behind the board needs work
The board is only one part of the job. When new safety switches go in, old wiring faults that were hidden for years can show up, because a safety switch trips when it detects current leaking where it shouldn’t. That’s the safety switch doing its job, but the fault still has to be fixed.
Older homes have a habit of hiding surprises behind the plaster. If we open things up and find perished insulation, an undersized cable or unsafe past work, we stop and show you before touching anything. You then get a revised price and a clear recommendation on what must be fixed now for safety and what can be scheduled later. Nothing extra gets billed without your say-so.
If a lot of the wiring is in poor shape, a partial or full rewire may be the better long-term answer. Our guide on whether you need to rewire your house explains how to tell.
3. An old backing board
Many older switchboards are mounted on a dark backing board, often black or brown. Some of these old boards contain asbestos. You can’t tell by looking, so don’t drill, cut or try to remove it yourself.
If your backing board might contain asbestos, it has to be handled safely under NSW rules when the old board comes out. That can add steps, time and cost to the job. We’ll point it out when we look at your board, so it’s in the quote and not a surprise on the day.
4. The condition of your meter box
Your switchboard usually sits in or beside the meter box. If the meter box is old, damaged, rusted or simply too small to fit a modern board with safety switches, it may need replacing or rearranging as part of the upgrade.
Meter box work can also involve your energy retailer or the local network if meters need to be moved or the supply needs to be disconnected and reconnected. Where that applies, we’ll explain what’s involved and how it affects the price and timing.
5. Adding solar, a battery or an EV charger
Power use in Newcastle homes is climbing. EV chargers, rooftop solar with batteries, ducted air con and home offices are all being added to switchboards that went in decades ago. Each of these needs space on the board and enough capacity in your supply.
Much of what we do in suburbs like Kahibah is checking that the incoming supply and the board can actually handle the new gear before it goes in, so nothing trips or overheats down the track. If you’re planning any of these in the next few years, tell us when we quote. Allowing room for them now usually costs less than reworking the board later.
That doesn’t mean you should pay for capacity you won’t use. Our approach is simple: measure the real load and quote the real job.
6. Single-phase or three-phase switchboard

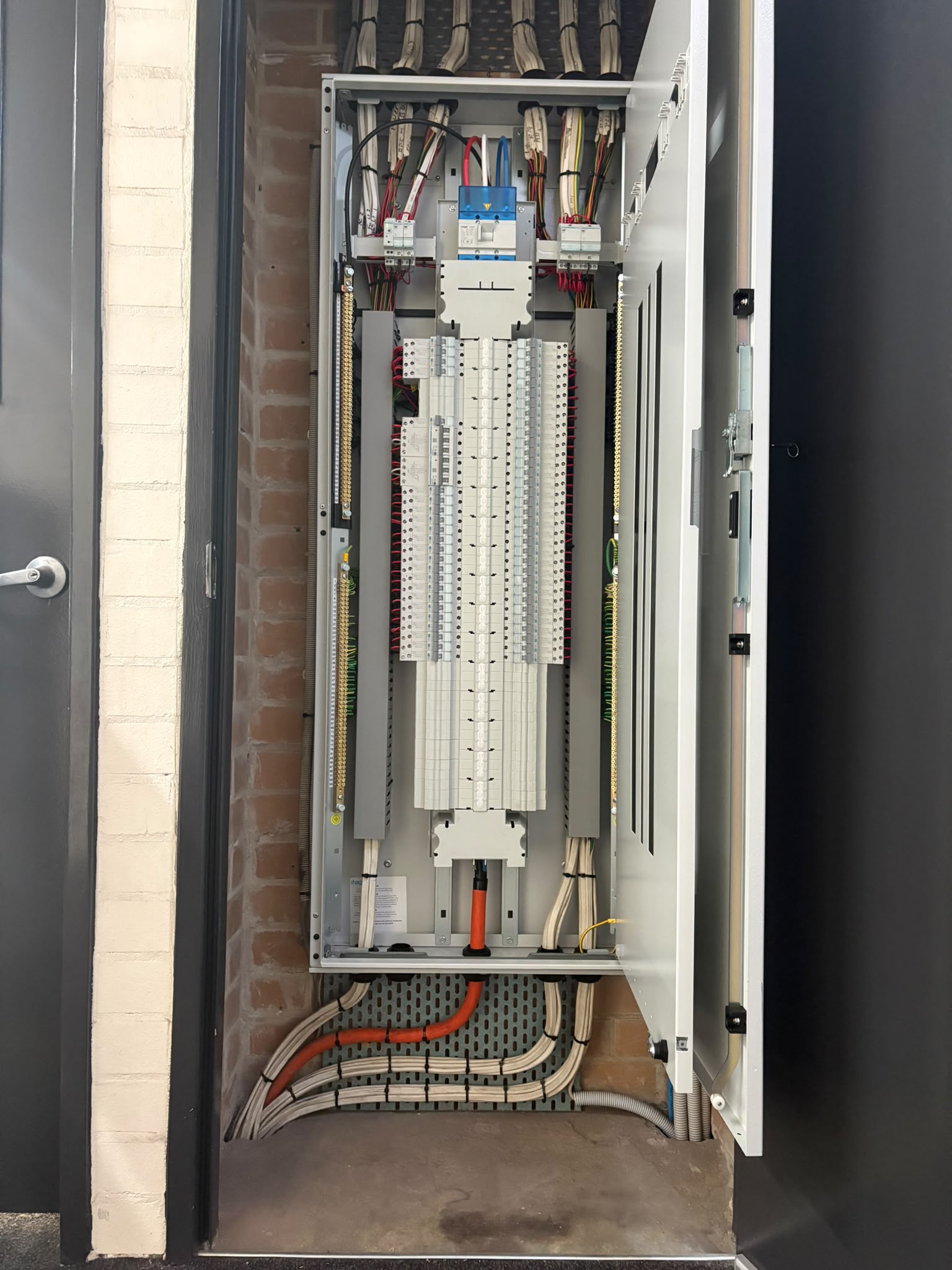

Most homes run on single-phase power. Some larger homes, homes with big air con systems, and properties with workshops or sheds run on three-phase. A three-phase switchboard has more parts and takes more work to install, so it generally costs more than a single-phase board.
Changing a home from single-phase to three-phase is a bigger job again. It involves the local network, which is Ausgrid across Newcastle and Lake Macquarie, and work on the supply side, which adds to the cost and the timeline. We install three-phase power for local businesses around Cardiff and Mayfield, and we’ll tell you honestly whether your home actually needs it.
7. Access, especially in older and coastal homes
Where the board sits, how easy it is to reach the roof space or underfloor, and how fragile the walls are all affect how long the job takes. Tight access and old plaster mean slower, more careful work.
Coastal homes add another factor. In beachside suburbs like Merewether and Bar Beach, salt air eats into outdoor fittings, and switchboards on exposed walls wear out faster than they would a few kilometres inland. On these jobs we use sealed enclosures and corrosion-resistant fittings as standard. It costs slightly more up front, and it stops you paying for the same repair twice.
Why switchboard upgrade quotes can differ so much
If you’ve had two or three quotes and they’re far apart, it’s usually because they don’t cover the same job. One quote might include safety switches on every circuit, full testing and your compliance certificate. Another might leave some of that out, or list a low starting price and add extras once the work begins.
Some quotes are given over the phone without anyone seeing the board. That’s quick, but it can’t account for the wiring, the backing board or the meter box. A quote based on an onsite look is far more likely to be the price you actually pay.
How to compare switchboard upgrade quotes
Before you choose an electrician, check each quote against these questions:
✓ Is the price fixed and in writing? You should get a fixed price before anything is pulled apart, including any access issues in older homes.
✓ Is it itemised? Our quotes are itemised, so if any travel applies to your location you will see it in writing before you accept, not as a surprise on the invoice.
✓ Does it include safety switches on all circuits? A new board in NSW needs them, so make sure they’re in the price.
✓ Does it include testing and a compliance certificate? In NSW, the electrician must give you a compliance certificate for this work. With us, you’re left with a Certificate of Compliance in hand.
✓ What happens if they find a problem? Ask how unexpected issues are handled and whether anything can be added without your approval.
✓ Is the electrician licensed? Only a licensed electrician can do switchboard work in NSW. Insight Electrical holds NSW contractor licence 297041C.
Our customers notice the difference. Rechell Coleman said, “Josh and his team were great to deal with prompt service and competitive quote.” Guanabana Designs put it this way: “Extremely happy with pricing. Clean up was 100%.”
Do you actually need a new switchboard?
Not always. We only replace switchboards if they pose a significant safety risk due to age or wear. If a circuit can be repaired, we repair it. If it genuinely needs replacing, we show you why.
If you’re not sure whether your board needs replacing, our guide to the signs you need to upgrade your switchboard covers what to look for, from old ceramic fuses to a board that keeps tripping.
How time on site affects the price
Time on site is a big part of the cost, and it depends on the same factors above. We’ve covered the day itself, how long the power is likely to be off and how to prepare in our guide to how long a switchboard upgrade takes. Once we’ve seen your board, we’ll give you an honest time estimate, and we give you a time window and keep it.
Frequently Asked Questions
How much does a switchboard upgrade cost in NSW?
A standard single-phase upgrade typically costs from $1,500 to $3,000 depending on your home. The number of circuits, the condition of your wiring, the backing board and meter box, any solar, battery or EV charger plans, single-phase or three-phase power, and access all change the price. Call us for a fixed, itemised quote after we’ve looked at your board.
Why do switchboard upgrade quotes vary so much?
Quotes often cover different work. Check whether each one includes safety switches on every circuit, testing, a compliance certificate and any meter box or wiring work. A quote based on an onsite look is more reliable than one given over the phone.
Will a new switchboard have safety switches on every circuit?
Yes. When a switchboard is replaced in NSW, the new board needs safety switch protection for the circuits it supplies. On every board we install, all safety switches will be active before we mark the job as complete.
Is a three-phase switchboard more expensive?
Generally, yes. A three-phase board has more parts and takes more work. Converting a home from single-phase to three-phase also involves the local network, which adds cost and time. We’ll tell you whether your home really needs it.
Do I get a certificate after a switchboard upgrade?
Yes. In NSW, the electrician must provide a compliance certificate for the work. When we finish, you’re left with a Certificate of Compliance in hand.
Can I get a fixed price before the work starts?
Yes. We look at your board first and give you a fixed, itemised price in writing before anything is pulled apart. If we find something unexpected, we stop, show you and agree on any change with you first.
Get a switchboard upgrade quote in Newcastle
The cost of your switchboard upgrade depends on several factors, so the simplest way to get a real figure is to have us look at your board. We offer free, no-obligation quotes for most electrical work, and for larger or more complex projects we’ll let you know upfront if a site inspection or consultation fee applies.
Insight Electrical is a family-owned business based in Redhead, backed by 40+ years combined experience. We work on homes across Newcastle, Lake Macquarie and the Hunter, and every installation follows AS/NZS 3000.
